Monarch Java Agent

Monarch is a hybrid Java agent for production diagnostics and JVM observation. It lets you attach targeted bytecode instrumentation to a live JVM, expose Prometheus-compatible JVM metrics, and move between instrumenter, observer, and hybrid workflows without changing the application code.

Operational safety: Monarch contains agent-side failures at startup and runtime boundaries so instrumentation errors degrade behavior instead of crashing application flow.

“Arise, shadows of execution!”

Why Monarch

Use Monarch when you need to:

• inspect a hot method in production without redeploying
• inject a temporary runtime debug probe to validate a hypothesis
• expose JVM health signals to Prometheus and Grafana
• combine traces and metrics during incident response

Key Abilities

• Stack trace printing: Print a stack trace when a target method is invoked.
• Argument logging: Capture and log method arguments.
• Return value logging: Capture and log method return values.
• Custom code insertion: Inject custom diagnostic code into target methods.
• Trace macro for custom code: Use MLOG(...) inside ADD rules to route diagnostic output into Monarch trace logs.
• Class replacement: Replace already-loaded classes from external .class files or .jar entries.
• Method profiling: Measure method execution time.
• Heap dump capture: Trigger heap dumps on method ingress/egress conditions.
• JVM monitoring: Track heap, CPU, GC, thread, and classloader behavior.
• Metrics endpoint: Expose Prometheus-compatible JVM metrics at /metrics (plus JSON compatibility at /metrics.json).
• Alert emails: Send email alerts for critical resource usage and deadlock conditions.

MonArgs

Summoning the Monarch

You can attach MonarchJavaAgent either during startup or during runtime.

For startup:

1. Download the latest agent JAR file from releases.
2. Start your Java application using -javaagent.
3. Pass the config file and bootstrap arguments.

java -Xverify:none -javaagent:/path/to/MonarchJavaAgent.jar=configFile=/path/to/config.yaml,agentLogFileDir=/path/to/log/dir,agentLogLevel=DEBUG,smtpProperties=/path/to/smtpProperties.props,agentJarPath=/path/to/MonarchJavaAgent.jar YourMainClass

For runtime attach:

1. Start your application normally.
2. Run monarchAgentStart.bat or monarchAgentStart.sh.
3. Provide the agent jar, config file, bootstrap arguments, and target PID.

Preflight validation mode (no startup side effects):

java -javaagent:/path/to/MonarchJavaAgent.jar=configFile=/path/to/config.yaml,preflight=true,agentLogFileDir=/path/to/log/dir,agentLogLevel=INFO,agentJarPath=/path/to/MonarchJavaAgent.jar YourMainClass

When preflight=true is provided, Monarch validates config and rules, prints a validation summary, and exits without starting instrumentation/observer components.

Commanding the Shadows

Monarch supports a nested, mode-aware YAML structure.

• instrumenter: bytecode instrumentation only
• observer: JVM observation and metrics only
• hybrid: both instrumentation and observer features

Canonical sample configuration:

mode: hybrid

instrumentation:
  enabled: true
  configRefreshInterval: 15
  traceFileLocation: C:\\TraceFileDumps
  agentRules:
    - ClassA::methodA@INGRESS::STACK
    - ClassA::methodA@INGRESS::ARGS
    - ClassA::methodA@EGRESS::RET
    - ClassA::methodB@INGRESS::ARGS
    - ClassA::methodB@INGRESS::STACK::[com.asm]
    - ClassA::methodB@EGRESS::STACK
    - ClassA::methodB@EGRESS::RET
    - ClassB::methodC@PROFILE
    - ClassB::methodC@INGRESS::HEAP
    - ClassB::methodC@INGRESS::ADD::[System.out.println(20);]
    - ClassA::methodA@INGRESS::ADD::[System.out.println(this.getClass().getName());]
    - ClassA::methodA@CODEPOINT(11)::ADD::[System.out.println(499);]
    - ClassA::methodA@CODEPOINT(11)::ADD::[System.out.println(499 + "," + "Ashutosh Mishra");]
    - com.example.MyService@CHANGE::FILE::[/opt/patches/MyService.class]
    - com.example.*@CHANGE::JAR::[/opt/patches/hotfix.jar]

observer:
  enabled: true
  printClassLoaderTrace: true
  printJVMSystemProperties: true
  printEnvironmentVariables: true
  metrics:
    exposeHttp: true
    port: 9090
    heapUsage: true
    cpuUsage: true
    threadUsage: true
    gcStats: true
    classLoaderStats: true

alerts:
  enabled: true
  maxHeapDumps: 3
  emailRecipientList:
    - abc@example.com
    - ashutosh@asm.com

Legacy flat keys are still accepted, but nested config is the default and takes precedence when both forms are present.

Current implementation note:

• instrumentation.traceFileLocation is still used as the shared trace output root for both instrumentation and observer traces.
• For observer mode, set instrumentation.traceFileLocation until trace output is moved to a shared config section.

The Monarch’s Decrees

Rule syntax:

<FQCN>::<MethodName>@<EVENT>::<ACTION>

Where:

• <FQCN> is the fully qualified class name
• <MethodName> is the method name
• <EVENT> is one of INGRESS, EGRESS, CODEPOINT, PROFILE
• <ACTION> is one of STACK, HEAP, ARGS, RET, ADD

Optional ADD trace macro:

• MLOG(<expr>) writes String.valueOf(<expr>) to Monarch trace file via TraceFileLogger.
• MLOG(...) is optional and backward-compatible; existing ADD payloads still work.

Examples:

ClassA::methodA@INGRESS::ADD::[System.out.println("legacy add path");]
ClassA::methodA@INGRESS::ADD::[MLOG("Money: " + objA.getMoney());]
ClassA::methodA@INGRESS::ADD::[if (objA != null) { MLOG("objA=" + objA); }]

Class replacement rule syntax:

<ClassPattern>@CHANGE::FILE::[</absolute/path/to/ClassName.class>]
<ClassPattern>@CHANGE::JAR::[</absolute/path/to/patches.jar>]

Where:

• <ClassPattern> supports exact FQCN (for example com.example.MyClass) or wildcard suffix matching (for example com.example.*)
• CHANGE applies only to classes that are already loaded
• FILE reads replacement bytecode from a single class file
• JAR reads replacement bytecode from matching class entries inside the jar

Rule validation diagnostics:

• Startup emits a rule validation summary with accepted/rejected/skipped counts.
• Rejected rules include reason and suggestion.
• CHANGE::FILE / CHANGE::JAR rules are prevalidated for path existence/readability and source-type expectations.

Shadow Metrics Gate

If observer.metrics.exposeHttp: true is enabled, Monarch starts a lightweight HTTP server exposing JVM metrics.

Default endpoints:

• http://localhost:9090/metrics
• http://localhost:9090/metrics.json

Prometheus scrape config:

global:
  scrape_interval: 10s

scrape_configs:
  - job_name: "monarch-java-agent"
    static_configs:
      - targets: ["127.0.0.1:9090"]

Common Prometheus queries:

• monarch_jvm_heap_used_bytes
• monarch_jvm_cpu_process_percent
• monarch_jvm_threads_current
• monarch_jvm_classloader_loaded

Sampling cadence transparency:

• CPU updates every 10s
• Heap updates every 30s
• GC/Thread/Classloader updates every 60s
• Scraping faster than update cadence may return repeated values, which is expected.

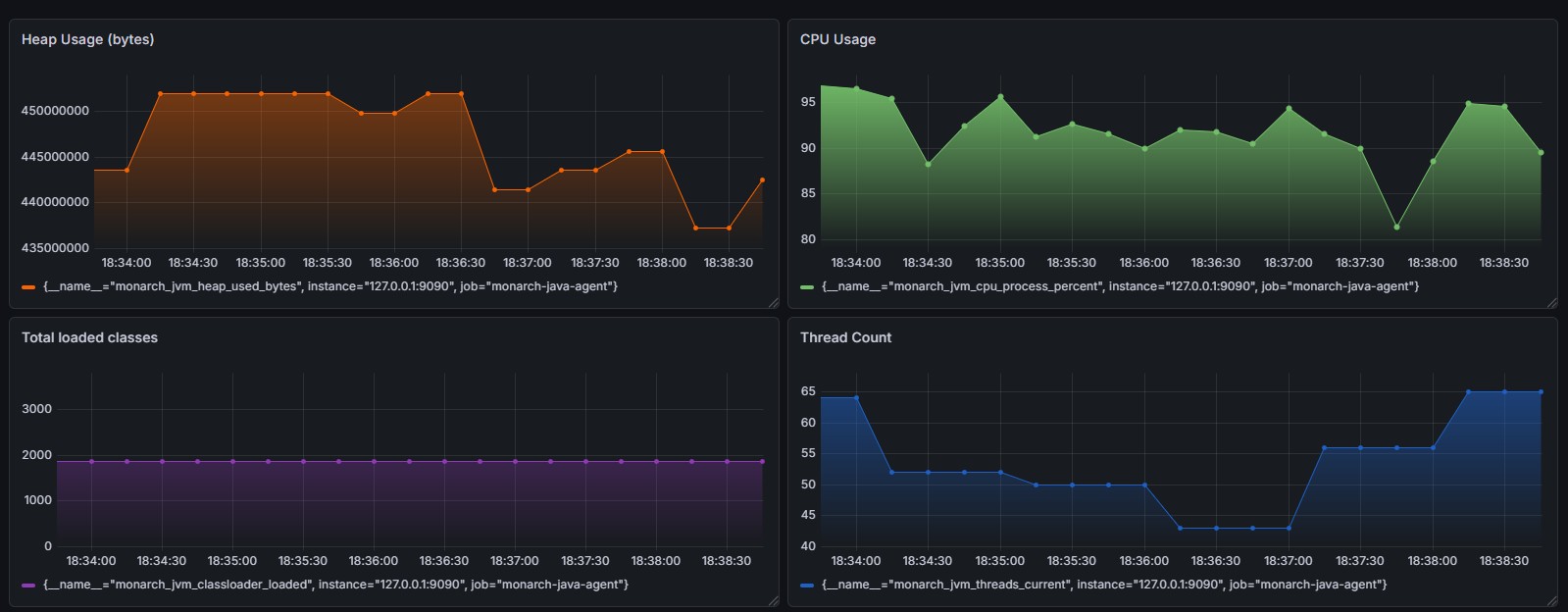

Example Grafana dashboard:

Forging the Shadow

git clone https://github.com/AshutoshIWNL/MonarchJavaAgent.git
cd MonarchJavaAgent
mvn clean package

For full build + tests:

mvn clean verify

Shadow Trials

powershell -ExecutionPolicy Bypass -File scripts\smoke-all.ps1

Individual suites:

powershell -ExecutionPolicy Bypass -File scripts\smoke-javaagent.ps1
powershell -ExecutionPolicy Bypass -File scripts\smoke-attach.ps1
powershell -ExecutionPolicy Bypass -File scripts\smoke-class-replace.ps1
powershell -ExecutionPolicy Bypass -File scripts\smoke-config-reload.ps1
powershell -ExecutionPolicy Bypass -File scripts\smoke-invalid-rule.ps1
powershell -ExecutionPolicy Bypass -File scripts\smoke-config-precedence.ps1

Linux/macOS:

chmod +x scripts/*.sh
bash scripts/smoke-all.sh

The Architect of Shadows

• Ashutosh Mishra (GitHub)

The Shadow’s Pact

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.
